HTML Pro Component¶

The HTML Pro component allows the embedding of HTML content (including layout, tables, and images) into JasperReports. While the support for basic HTML formatting using HTML as the markup language for text fields is already available, it is limited and does not support images, tables, and custom CSS-based formatting.

The component fetches HTML content provided by an expression (contentExpression), which can either be a string containing HTML code or a URL. Currently, the support for fetching extra options (such as authentication, request headers, URL parameters and HTTP verb) is not available.

The component's output can span several pages. It modifies the HTML content to prevent text from splitting between pages, similar to how browsers handle document printing. However, any CSS directives with media="print" are ignored.

HTML Output

The component uses an iframe and CSS to present only the relevant portion of the HTML content on each page.

The user perceives only the chunk of the HTML document reserved for that page. Since the HTML is provided by the user and not generated by JasperReports, links are undetected by JasperReports and unavailable in the report metadata, even if the user wants to use them in advanced modes like Visualize.js.

PDF Output

Each fragment of HTML is exported as PDF and superimposed onto the JasperReports PDF output.

Other Output

HTML portions are rendered as JPEG images and embedded into the final document.

Playwright Library Usage¶

The JasperReports HTML PRO component leverages the Microsoft Playwright library to provide enhanced HTML report generation capabilities. To facilitate a seamless user experience, the Jaspersoft Studio Pro product includes the appropriate Playwright version pre-bundled and tailored to the user's specific operating system. This integration, with a Google Chrome installation on the user's machine, ensures the HTML PRO component operates flawlessly and accurately renders reports in the desired HTML format.

The mandatory playwright.cli.dir property is already configured internally within the Jaspersoft Studio Pro application plug-in(s).

Jaspersoft Studio component¶

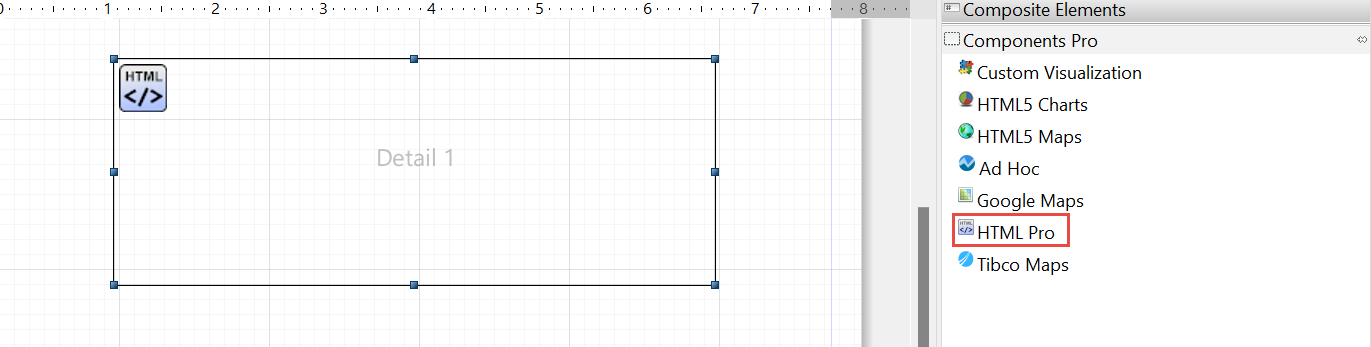

The HTML Pro component is a new component and is available in the Components Pro subpalette. The HTML Pro component allows you to use HTML in Jaspersoft Studio and JasperReports Server.

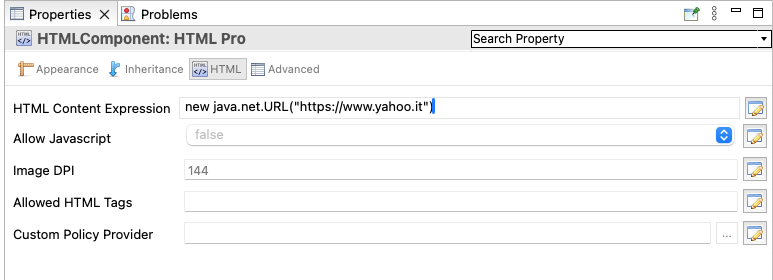

The Properties pane, in the lower-right corner, currently allows you to view the following HTML Pro properties:

• HTML Content Expression: This is where you provide the specifics of the content (either the URL or the HTML content itself) that will be rendered.

• Allow Javascript: The com.jaspersoft.jasperreports.html.component.allow.javascript is used to allow or disallow javascript in HTML. By default, javascript is not allowed, so it is set to false.

• Image DPI: The com.jaspersoft.jasperreports.html.component.image.dpi property is used to set the resolution of the images in DPI. This is used when exporting the HTML content to formats other than PDF and HTML.

• Allowed HTML Tags: The com.jaspersoft.jasperreports.html.component.allowed.elements property is used to set the list of allowed tags in HTML. This property only works if the HTML is provided as a string. It has no effect if the HTML is loaded from a URL.

• Custom Policy Provider: The com.jaspersoft.jasperreports.html.component.policy.factory.provider property specifies a class implementation of the com.jaspersoft.jasperreports.html.component.policy.factory.provider.PolicyFactoryProvider interface. It enables a more granular and detailed approach to input sanitization. It is based on customizing an org.owasp.html.PolicyFactory.

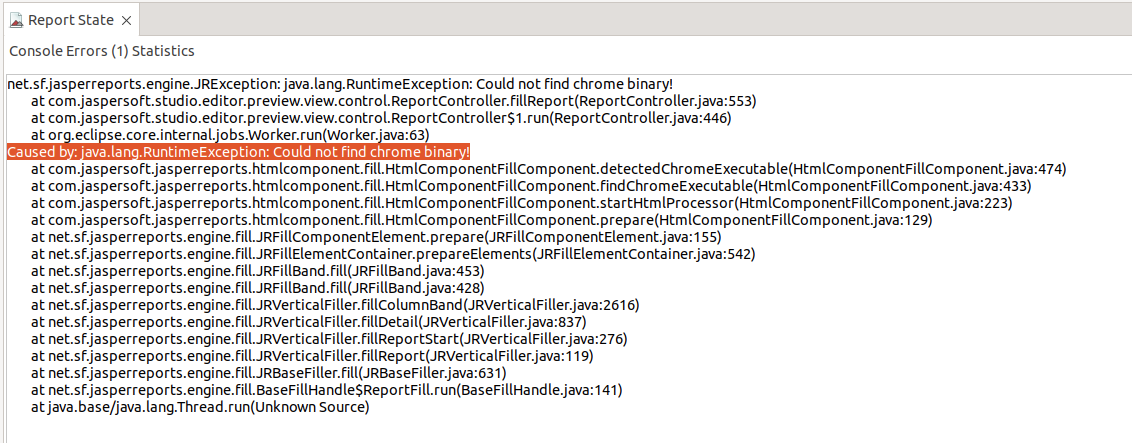

The preview requires Chrome to run. Otherwise, a runtime exception is thrown.
