Working with TIBCO GeoAnalytics Maps

Jaspersoft Studio uses TIBCO GeoAnalytics Maps to produce data-rich maps. This section describes their set-up and configuration, including:

Important

The features in this section may be restricted by your JasperReports Server software license. If you don't see some of the options described, your current license likely prohibits their use. Contact us to learn about your licensed features or to discuss upgrading.

In addition to the other types of map component that Jaspersoft Studio supports, TIBCO GeoAnalytics Maps are also supported. These multi-layer maps are designed for use in interactive web environments, and support both markers and paths. They also support the ability to provide a street address and resolve it to the correct latitude and longitude (sometimes called geolocation).

Because these components download content from either TIBCO's service or from Google Maps, they require a connection to the Internet. While the maps themselves are freely available, using the GeoAnalytics geolocation serve to resolve street addresses requires an additional license.

Warning

These maps are well suited to web-based environments, such as HTML export or when viewed through an interactive viewer such as JasperReports Server; however, limitations in the underlying technology prevent some TIBCO GeoAnalytics Map features from working in static formats, such as PDF. In this case, the map is converted to an image, which is always downloaded from Google Maps instead of TIBCO's server. In addition, if the map's location is resolved from a street address, the canvas may be blank (or blue); this happens when the address's latitude and longitude are not available.

If your target output format is something other than HTML, consider using the standard map component.

The map component consists of three layers: a map, a set of paths, and a set of markers. The lowest layer contains the map itself, rendered by your choice of providers: TIBCO Maps or Google Maps. In both cases, the image is formed of tiles retrieved from a remote server. The next two layers (first paths then markers) can contain paths and markers or shapes.

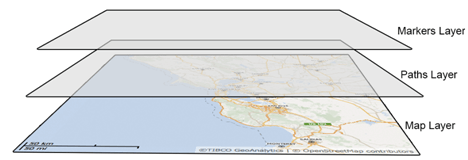

tmap layers
Figure 1 Basic structure of the TIBCO GeoAnalytics Map component

Configuring a Basic Map

To create a TIBCO Map component

  1. First locate the component in the Palette. It uses this icon: tmap icon; drag it onto the canvas.

    At a minimum, the TIBCO Map component requires the location of the area to display, which can be defined by these manually exclusive options:

    1. The latitude and longitude of the location.
    2. The street address of the location (assuming you have a license for TIBCO GeoAnalytics geolocation services). To use this option, you must also provide credentials for TIBCO's geolocation service. You can either enter these in the Maparama Credentials section of the TIBCO map component's properties, or by defining them in the jasperreports.properties file so that they can share across multiple reports. These properties are:
  2. com.jaspersoft.jasperreports.tibco.maps.customer: the customer name used with TIBCO GeoAnalytics Maps

    • com.jaspersoft.jasperreports.tibco.maps.key: the corresponding license key for the specified user
  3. To define a location, edit the TIBCO Maps component's Location properties. Entering a latitude/longitude pair or address defines a static location. You can also use parameters to define the components location and all other TIBCO Map properties dynamically.

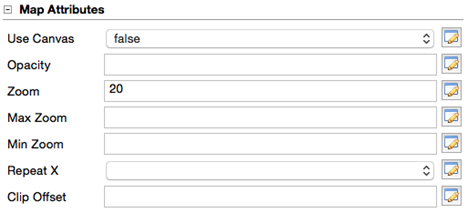

tmap attys simple
Figure 2 TIBCO Map Attributes

Map attributes determine how the map layer of the component is rendered. The attributes are all optional:

Property Property Value
Use Canvas true false This property refers to the way that the map is rendered (by using a canvas or SVG layers)
Opacity 0.0- 1.0 Level of opacity of the map.
Max Zoom 1 - 18 The maximum allowed zoom
Min Zoom 1 - 18 The minimum allowed zoom
Repeat X true | false Specifies whether tiles are repeated when the world's bounds are exceeded horizontally
Clip Offset integer The clip offset of the map

Using Expressions for Properties

The simplest way to define the map layer's properties is to set them to static values. However, this is a much more limited approach than using expressions to pass parameters to the component dynamically, which allows you to evaluate the data in your data set and use the results to populate the map layer's properties. If you do not specify a different data set, the component uses the main dataset of the report. In the components properties, properties based on expressions are indicated by displaying f(x) next to the field, as shown below.

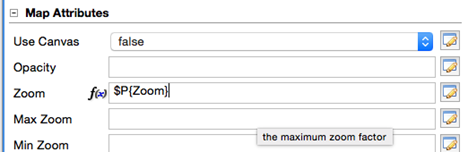

tmap attys zoom exp
Figure 3 Map properties showing Zoom defined by an expression

To specify a different dataset to resolve the map attributes based on expressions, click the Use Dataset checkbox to select it, and select the dataset to use in the Dataset Run.

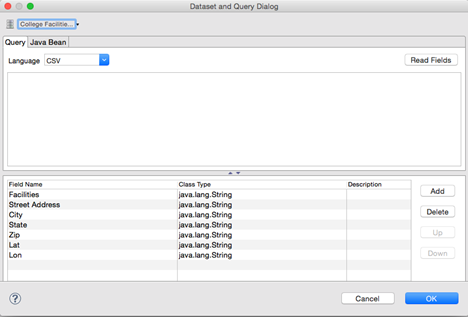

tmap use dataset
Figure 4 Defining the Dataset to use to resolve map attribute expressions

Data Runs are used throughout Jaspersoft Studio and its related products when a report includes a subdataset. Use a Data Run to define values for the subdataset's parameters.

Understanding Layers

Each layer in the map component controls different aspects of the final map rendered in your report:

  • The maps layer defines the map tiles that are displayed by the component's image, which are determined by its location and zoom, the maximum and minimum zoom allowed in the component, and the image's opacity.

  • The marker layer defines locations on the map that display an image you select.

  • The path layer defines lines between locations on the map.

Each layer can be named uniquely. These names can be displayed in the JasperReports Server interactive report viewer in the Layers dropdown; this allows your user to select which layers to drawn.

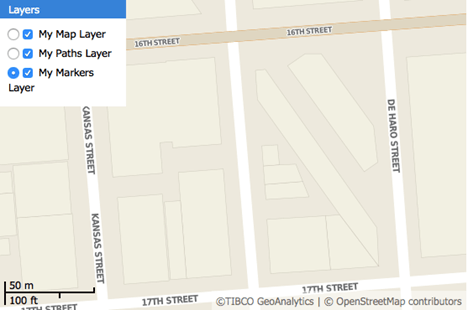

tmap select map layer rt
Figure 5 Layer names defined in the component can control the layers drawn in the final report

Working with Markers

Markers are points rendered on the second layer of the TIBCO Map component.

This section describes:

Static Markers

  1. Edit the map component's properties.
  2. On the Markers tab, click Add.
  3. Define your marker by specifying a location and icon. The list of properties for a marker includes:

  4. target

    • string
    • optional
    • _blank
    • The hyperlink target for the marker

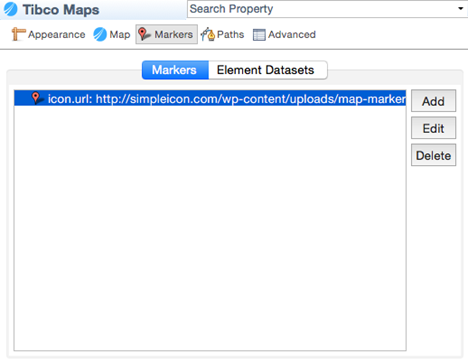

tmap marker tab
Figure 6 Defining a map's markers
  1. Specify the icon as a URL that points to the image to use. It's loaded by the JavaScript API.

    Jaspersoft does not currently support loading an image directly from the repository, or as a resource local to the report.

    The location can be set by latitude/longitude coordinates or an address to be geolocated, as described above.

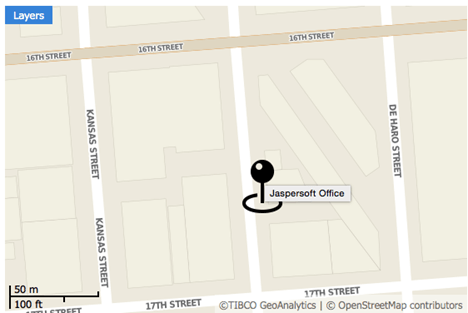

    tmap address ri
    Figure 7 A map with a marker
  2. For the addresses, set each property to form the address: country, state, zip, city, street.

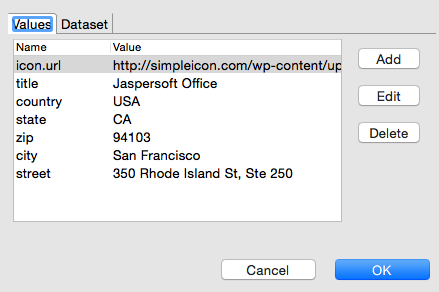

tmap marker jasper addy
Figure 8 Marker properties set to a static location

Marker properties include:

Property Name

Type

Required?

Possible Values

Description

xoffset

Numeric (integer)

Optional

0

The horizontal offset of the marker icon is measured in pixels

yoffset

Numeric (integer)

Optional

0

The vertical offset of the marker icon is measured in pixels

anchor

String

Optional

bottom-left, bottom-right, bottom-center

The anchor point of the marker icon

draggable

Boolean

Optional

false

Specifies whether users can drag the marker

icon.url

String

Required

N/A

URL for the icon

title

String

Optional

N/A

The ToolTip for the marker icon; works with icon.url

hyperlink

String

Optional

N/A

The hyperlink text for the marker

target

String

Optional

N/A

The hyperlink target for the marker. The default value is _blank.

This is a simplified example. The more common scenario is to read location data from the database.

Dynamic Markers

The steps above define the marker as a static address known when the report was created. But it is far more useful to define the markers based on locations in your report's data dynamically. A single map can use both static and dynamic markers, and locations can be based on data from more than one data source.

In this example, we use data from the City College of San Francisco's public facilities data set that we have saved as an Excel file.

Facilities Street Address City State Zip Latitude Longitude
Airport SF International Airport, North Access Road, Building 928  San Francisco CA 94128 37.622511278000445 -122.39519978799973
Civic Center 750 Eddy Street San Francisco CA 94109 37.783008003000475 -122.42000284399973
Castro 450 Castro Street San Francisco CA 94114 37.76168744600045 -122.43511354199973
Chinatown/North Beach 808 Kearny Street San Francisco CA 94108 37.79551773600048 -122.40496557999973
Downtown 88 4th Street San Francisco CA 94103 37.784588004000454 -122.40438877299971
Evans 1400 Evans Avenue San Francisco CA 94124 37.74169579700049 -122.38589540299972
Fort Mason Laguna Street & Marina Boulevard, Building B San Francisco CA 94123 37.80001344200048 -122.43517818299972
John Adams 1860 Hayes Street San Francisco CA 94117 37.77385843900049 -122.4469528999997
Mission 1125 Valencia Street San Francisco CA 94110 37.754794183000456 -122.42088522899968
Ocean 50 Phelan Avenue San Francisco CA 94112 37.72408746400049 -122.45231737299969
Southeast 1800 Oakdale Avenue San Francisco CA 94124 37.73684564000047 -122.39424548999972
Gough Street 31/33 Gough Street San Francisco CA 94103 37.772268634000454 -122.42098248799971

Since the data set includes both street addresses and latitude/longitude pairs, we can explore both functions.

To use dynamic locations

  1. Create an Excel file with the data provided above and a data adapter that points to it. Export the data adapter to the project folder; name it CollegeFacilities.jrdax.

  2. In the report, create a dataset: right-click the root in the outline view and select Create Dataset.

  3. Right-click the new dataset and select Dataset and Query.

  4. In the Query dialog, select the CollegeFacilities.jrdax data adapter and click Read Fields.

  5. By default, the fields are all set as type String. To change the Latitude field to a Float, double-click in the Class Type column, click the button ellipsis..., and select java.lang.Float from the type menu. Repeat these steps to set the Longitude data type to Float.

  6. Click OK.

  7. Use the data adapter to populate the dataset. With the CollegeFacilities dataset selected in the outline view, click the Advanced tab in the Properties view, then select the property Properties and click the button ellipsis to open the Properties dialog.

  8. Add a property: net.sf.jasperreports.data.adapter, and specify the name of the data adapter file saved earlier (CollegeFacilities.jrdax).

    We can use this new dataset to set markers on the map.

  9. Select the map in the Design tab, click the Markers tab, and click Add.

  10. Click Dataset, check the Use Dataset checkbox, and click Add.

  11. Select the CollegeFacilities dataset and accept the defaults. Studio uses the data adapter referenced by the net.sf.jasperreports.data.adapter property set previously for this dataset.

  12. Click OK.

    The dataset is added to the list of datasets that we use for markers.

  13. Click Values and create an expression for each marker property. For example, provide the title, street, city, state, country.

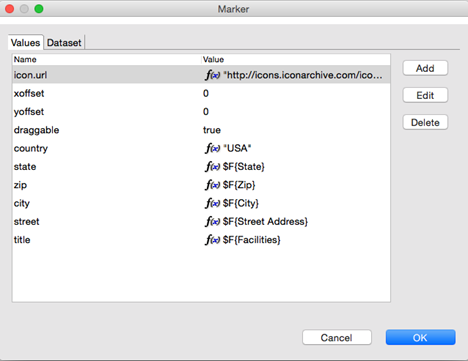

    tmap props dataset loc
    Figure 9 Location values defined as expressions

    This example uses an icon from the web: Pink Push Pin.

  14. Click OK.

  15. Preview your report in HTML.

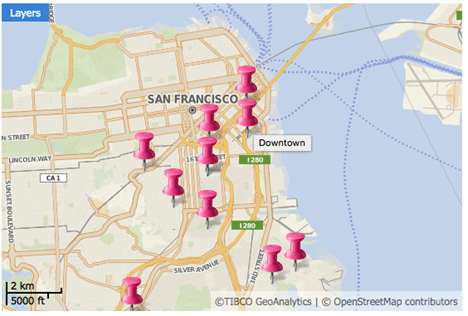

tmap final map pins
Figure 10 San Francisco City College facilities marked on a map

Working with Paths

Paths are lines rendered on the third layer of the TIBCO Map component. A path is defined by:

  • A name that serves as a path identifier in case different paths appear on the map.

  • A style that specifies various style configuration properties, such as line and fill color, line weight, and opacity.

  • A collection of places (points) on the map defined by latitude/longitude coordinates or addresses. These are connected to form the path.

To define a path in Jaspersoft Studio

  1. On the Paths tab, use the Styles section to define a style to associate with the path: click Add to do so.

    Style properties can be added manually or by specifying a dataset. The style name sets the style property when adding points to the path.

  2. Use the Paths section to add points to the path: click Add in this UI area to do so. For each point, specify:

    1. The path name (to identify which path includes the point)
    2. The style property (to identify the style associated with this path)
    3. The latitude/longitude coordinates or the address of the point

Like styles, points can be added manually or by using a specific dataset. Pay close attention when adding points. They are connected on the map in the order that they are declared in the JRXML file. If they are not declared in a sensible order, the path does not make sense, either.
