Formatting Charts¶

You can control some aspects of how data points, field names, and labels are displayed on your chart, including:

• Whether data points are displayed.
• Showing a measure name on charts including only a single measure.
• Restricting the number of labels displayed.
• Rotating the direction of label text.
• Selecting the colors used by the chart.
• Defining how gauges are displayed.

JasperReports Server also allows you to edit many of the chart's properties for cases when you want more control over the appearance of a chart.

Displaying Data Points¶

You can choose whether to display data points in your line, time series, or area chart. Data points can help users visualize chart data more accurately.

To show the data points on a chart, in the Format Visualization panel, in the Appearance settings, click the Show data points switch to turn the setting on.

To remove data points from the chart, click the Show data points switch to turn the setting off.

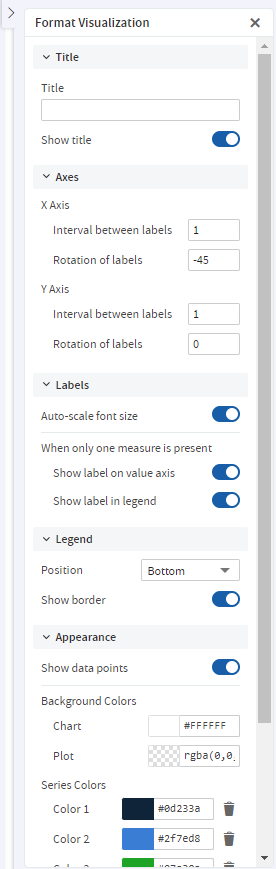

Figure 1 Format Visualization Panel

Displaying the Measure Name/Label on the Value Axis¶

You can choose to display the measure name/label on the value axis. To show the measure name/label on the value axis, in the Format Visualization panel, in the Labels settings, click the Show label on value axis switch to turn the setting on.

To remove the measure name/label from the value axis, click the Show label on value axis switch to turn the setting off.

Restricting Label Display¶

By default, every field included in your chart has a label displayed along either axis. Measures show up as numeric values, often along the Y axis, and fields being measured shows up as text along the X axis. On some charts - especially those with many fields included - these labels may overlap, crowd together, or become difficult to read. You can alleviate this problem by "stepping", or reducing, the number of labels displayed on your chart.

To reduce the number of labels on your chart, in the Format Visualization panel, in the Axis settings:

• For X Axis: Under X Axis, in the Interval between labels input, specify how often you want the axis label to appear.

• For Y Axis: Under Y Axis, in the Interval between labels input, specify how often you want the axis label to appear.

  For instance:

  • To display every second label, enter 2.
  • To display every third label, enter 3, and so on.

To display every label, enter 1 in the Interval between labels inputs.

Rotating Label Text¶

By default, the labels on your chart are displayed horizontally. Multiple labels, or very long ones, can be difficult to read. You can change the direction of these labels, on both the X and Y axes, to improve chart readability.

To rotate label text, in the Format Visualization panel, in the Axes settings:

• For X Axis: Under the X Axis, in the Rotation of labels input, specify the degree of rotation to apply to labels.

• For Y Axis: Under the Y Axis, in the Rotation of labels input, specify the degree of rotation to apply to labels.

  For instance:

  • To rotate the labels clockwise 90 degrees, enter 90.
  • To rotate the labels counter-clockwise 90 degrees, enter -90.
  • To rotate the labels clockwise 45 degrees, enter 45, and so on.
  • To return the labels to their original, horizontal position, enter 0 in the Rotation of labels inputs.

Changing the Chart's Colors¶

You can choose the colors of your chart by defining a series of colors for it to use. You can also choose the background's colors.

To choose the chart's colors

1. In the Format Visualization panel, go to the Appearance settings.

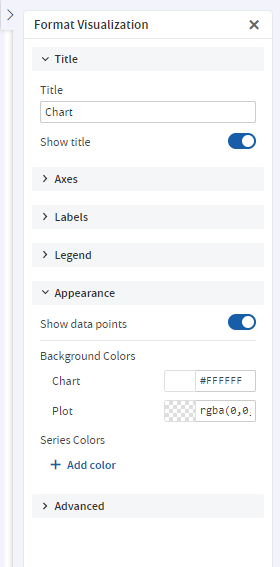

   Figure 2 Appearance Settings

2. Under Series Colors, click + Add color to add the first color.

   The color picker button appears. The button displays a color and a corresponding Hex value.

3. Click the button to open the color picker window.

4. Select the color that you want to use.

5. Click outside the color picker window to close it.

6. Click + Add color to add additional colors.

   Note

   The order of the colors added to the chart is the order they appear in the series.

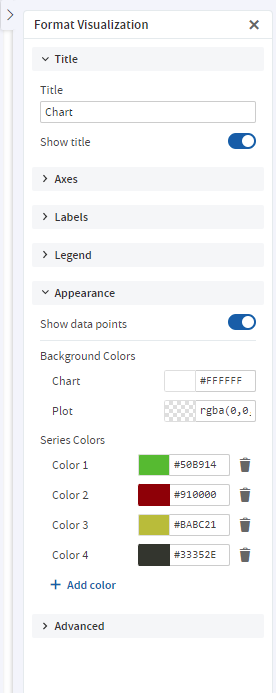

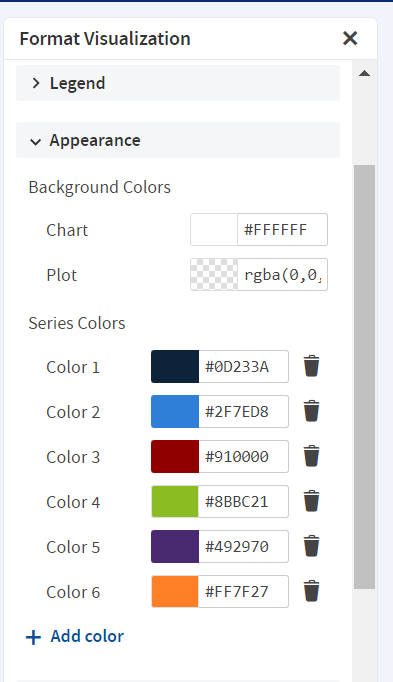

   Figure 3 Appearance Settings with Multiple Colors in Series

7. You can change the colors of the chart background and plot using the color picker buttons under Background Colors.

   JasperReports Server reloads the chart with the new colors.

Changing the Display Settings for Gauges¶

Gauges are circular and semi-arc charts. The length of the circle or semi-arc is based on a single data value in proportion to the minimum and maximum measurement amounts that you define.

Gauges have their own display settings under the Appearance settings, where you can select how they appear in the Ad Hoc view. You can specify the layout of the gauges on the canvas, the color stops, and the minimum and maximum values for the gauge's measure.

The settings under the Appearance settings apply to all gauges in the Ad Hoc view.

To edit a gauge's display settings

1. In the Format Visualization panel, go to the Appearance settings.

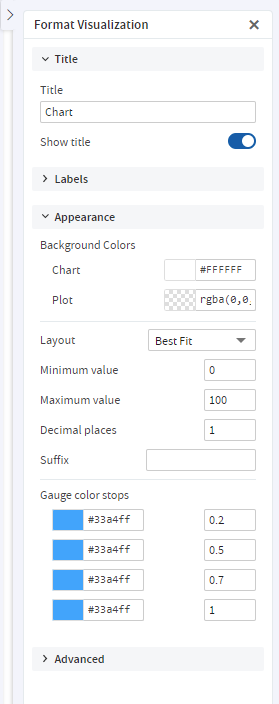

   Figure 4 Appearance Settings

2. From the Layout dropdown menu, select the layout for displaying the gauges. By default, the layout is Best Fit, which displays all the gauges on the canvas in one or more rows. The gauges can also be displayed in a single vertical column or a single horizontal row.

3. Enter the minimum and maximum values for the gauge's measure. For gauge and arc gauge charts, each measure added to the Ad Hoc view is displayed as its own gauge and the gauge's circle or arc represents how a single data value in the data source compares to the maximum measure. For multi-level gauge charts, each measure is displayed as concentric circles in the gauge. By default, the minimum is 0 and the maximum is 100. The measures selected for the Ad Hoc view also determine whether to display the data as percentages or as numeric values.

4. Enter the number of decimal places to show as part of the value displayed in the gauge. The maximum number of decimal places you can specify is 8.

5. Enter a suffix string if you want to label the value displayed in the gauge.

6. Enter a value for each color stop for the gauge. Color stops define a gradient progression for the gauge's colors in the Ad Hoc view. The default color stop values are 0.2, 0.5, 0.7, and 1.

   Note

   You can have a maximum of four color stops in your gauge. Each color selected is the specific color displayed at the corresponding stopping point. The colors displayed in the gauges are based on where the gauge's value falls on the defined gradient.

7. Click the color picker button for each stop to open the color picker window and select the color.

   JasperReports Server reloads the Ad Hoc view's gauges with the new display settings.

Creating and Changing the Display Settings for Pies¶

Pies are charts displayed in a circle. The circle is divided into slices to display numerical proportion. The length of a slice is proportional to the quantity that it represents.

You can create a pie using the Fields and Measures. You can select how they appear in the Ad Hoc view. You can specify columns and rows, use the Drill Down option, Data Level slider and Format Visualization panel to create a pie chart. The New Ad hoc View page lets you create and change the display settings of the pie chart.

To create a pie using Old Layout Band

1. On the New Ad hoc View page, select Pie from the Select Visualization Type pop-up.

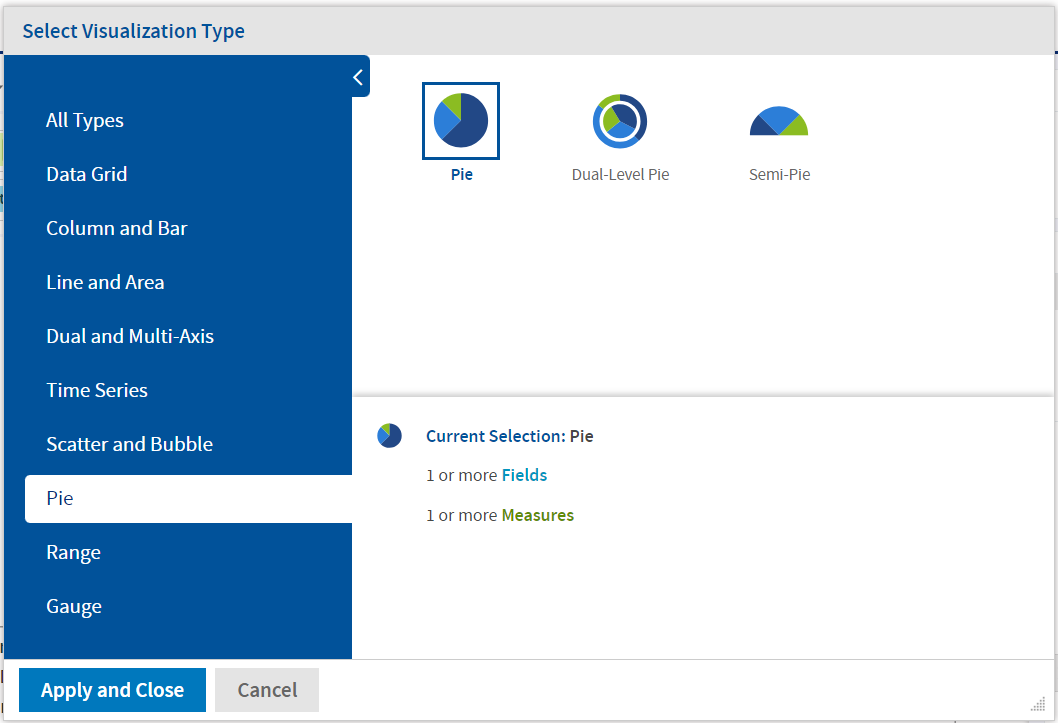

   Figure 5 Select Pie

2. View the following sections on the page:

   • Fields and Measures
   • Chart canvas
   • Filters
   • Format Visualization

3. Drag and drop the Fields and Measures in the Rows and Columns fields. The pie according to the selected Columns and Rows is displayed.

   The Title of the chart (if provided) is displayed at the top of the canvas.

   Note

   The Title can be provided either from the Format Visualization panel or by clicking Click to add a title on the canvas.

   The name of the pie is displayed at the top-left corner of the pie. The name consists of the names of Measures from Columns. The name may also consist of fields, if added to Columns (also depends on Columns Data Slider). The legend is displayed at the bottom of the canvas.

   Note

   The Legend is based on Rows only.

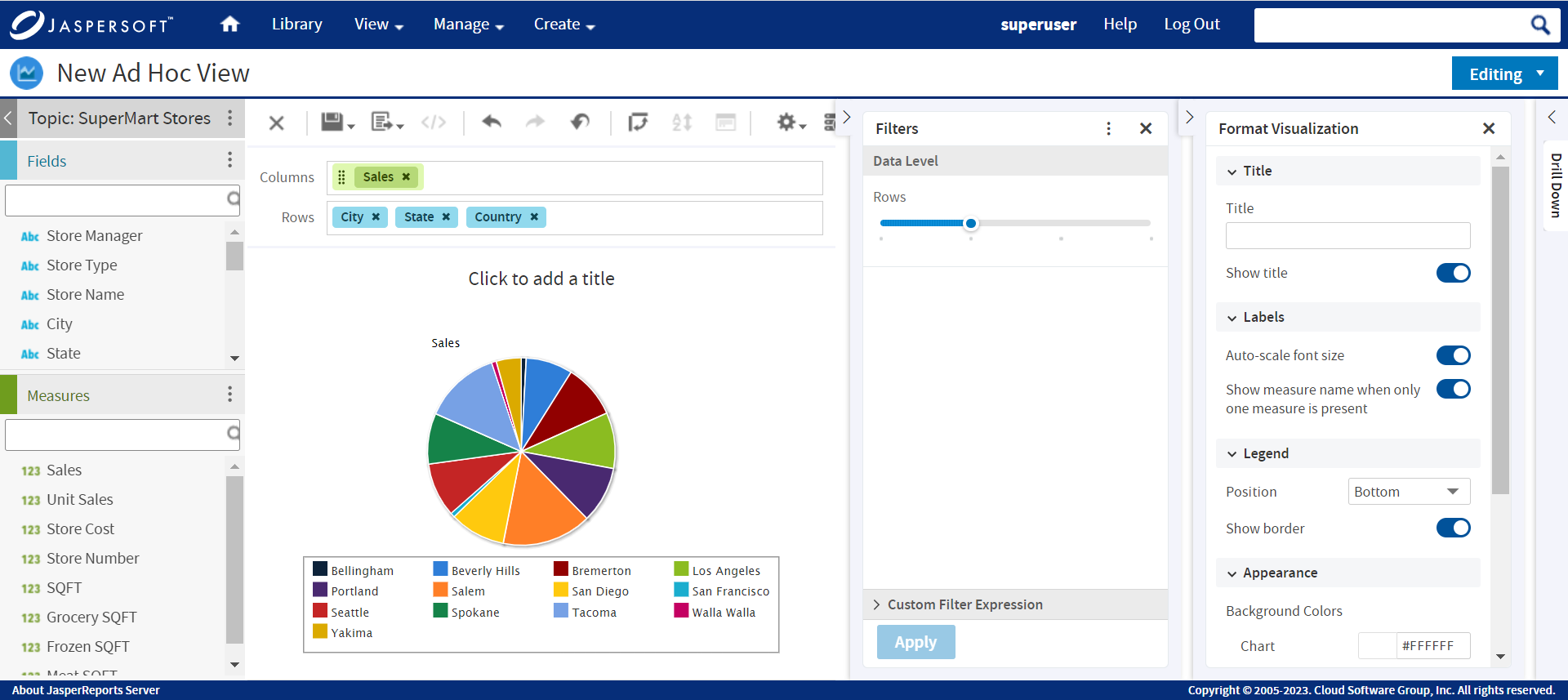

   Figure 6 Select Columns and Rows

   Note

   The number of pies depends on the number of Measures in Columns. If there are two Measures in Columns, then two pies are displayed.

   It also depends on the Fields added to the Columns. There may be one Measure but adding Fields and setting the Data Level slider can increase the number of pies.

4. In the Filters section, drag the Row slider to control the values from the selected fields from Rows.



   Figure 7 Row Data Level Slider

   Note

   If there is more than one field selected in Columns, a Column slider is also displayed. Select the field, across all fields, which must be used to generate pies.

5. Hover the mouse over the pie and view the tool-tip.



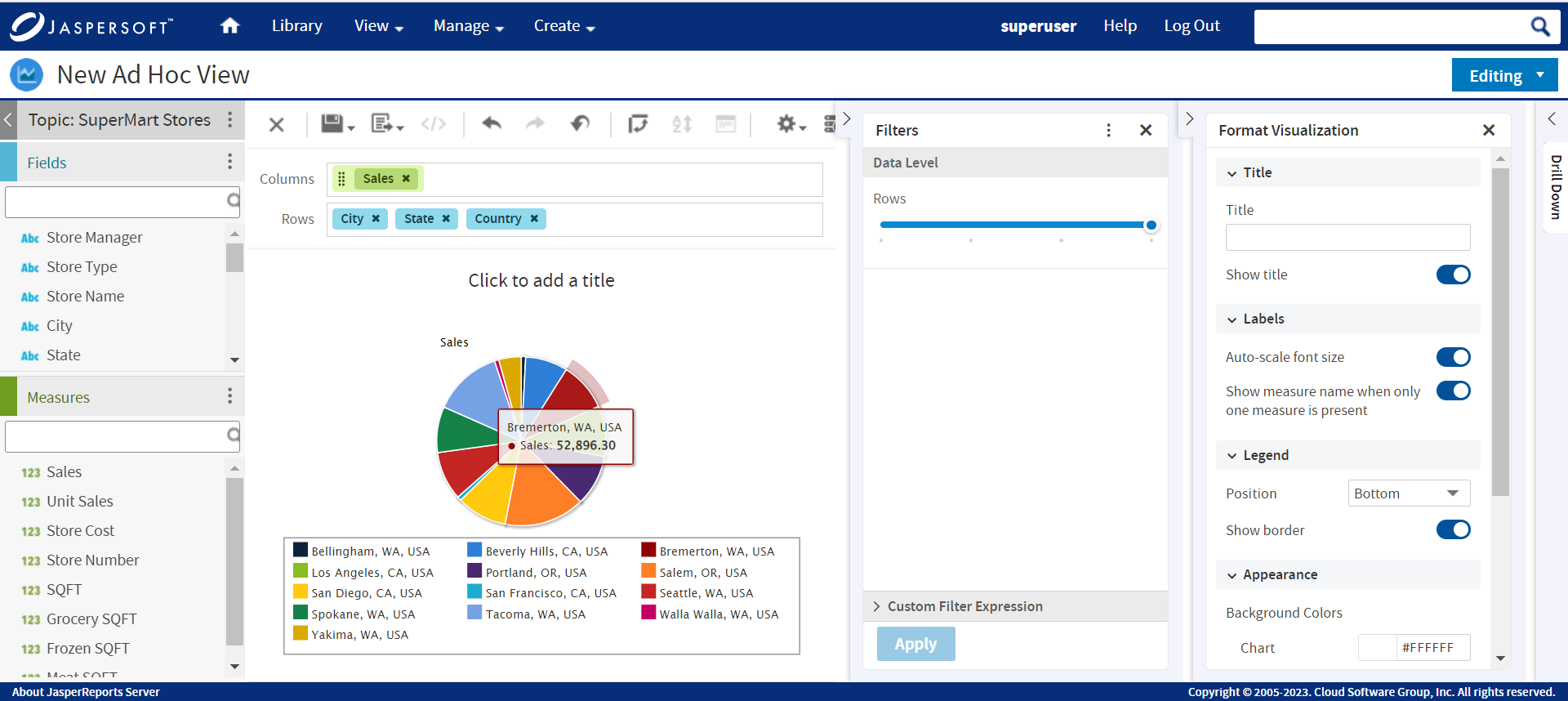

   Figure 8 Tool-tip

6. In the Format Visualization panel, provide the information, and enable or disable the toggles in the Title and Labels sections.

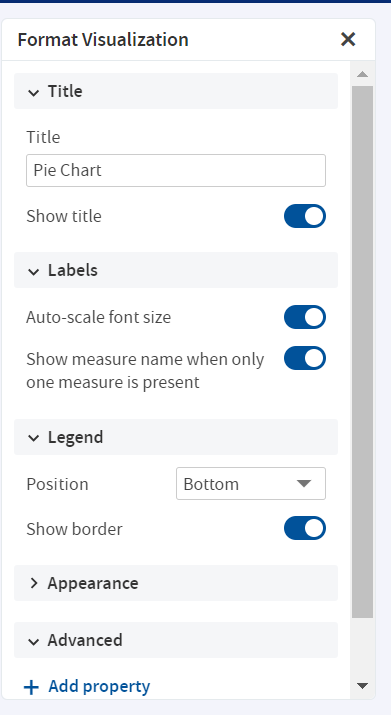

   Figure 9 Format Visualization

7. In the Legend section, use the Position dropdown menu and select the position of the legend display. By default, the position is Bottom, which displays the legend below the pie. The legend can also be displayed at the top, left, and right. You may also choose not to display the legend.

8. Go to Appearance settings. Click the color picker to select Background Colors and Series Colors. JasperReports Server reloads the Ad Hoc view's pie with the new display settings.

Figure 10 Appearance Settings

To create a pie using New Layout Band

1. On the New Ad hoc View page, select Pie from the Select Visualization Type pop-up.

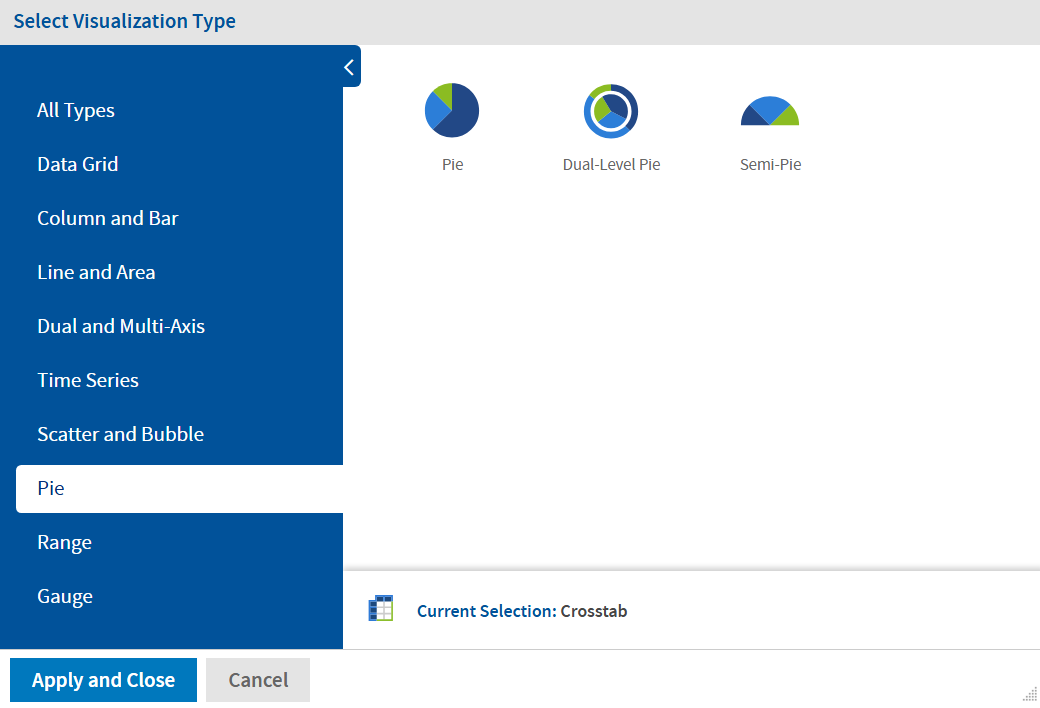

   Figure 11 Select Pie

2. View the following sections on the page:

   • Fields and Measures
   • Chart canvas
   • Filters
   • Format Visualization

3. Drag and drop the Fields and Measures in the Slices and Multiples fields. The pie according to the selected Slices and Multiples is displayed.

   The Title of the chart (if provided) is displayed at the top of the canvas.

   Note

   The Title can be provided either from the Format Visualization panel or by clicking Click to add a title on the canvas.

   The name of the pie is displayed at the top-left corner of the pie. The name consists of the names of Measures from Multiples. The name may also consist of fields, if added to Multiples (also depends on Slices Data Slider). The legend is displayed at the bottom of the canvas.

   Note

   The Legend is based on Slices only.

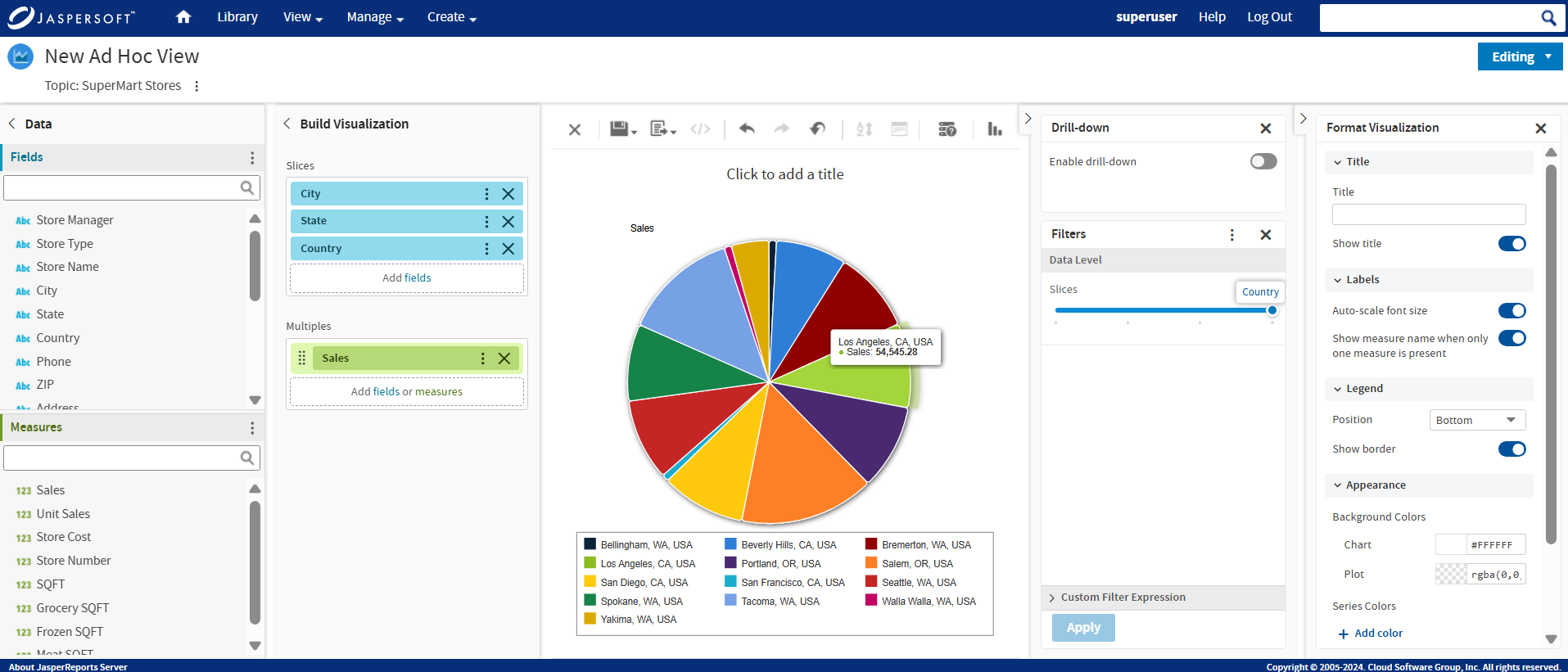

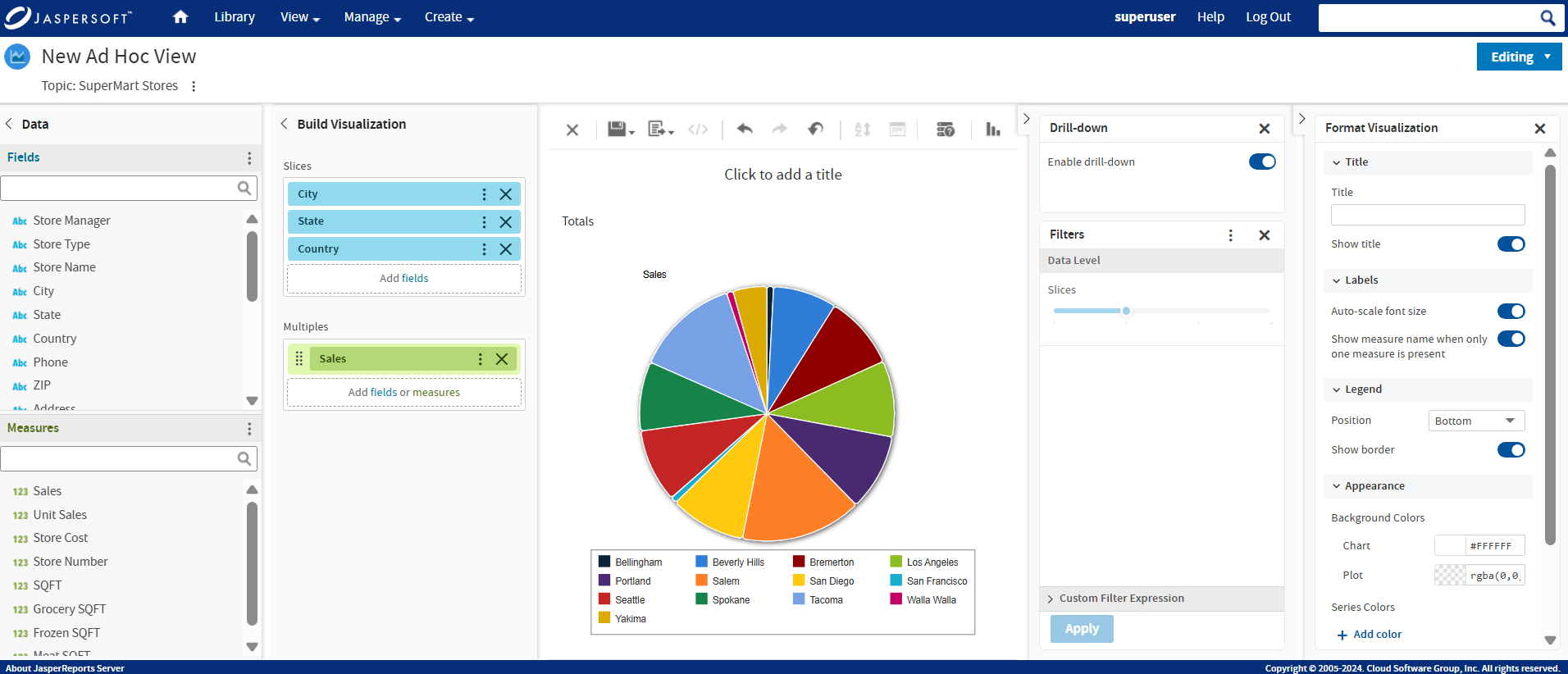

   Figure 12 Select Multiples and Slices

   Note

   The number of pies depends on the number of Measures in Multiples. If there are two Measures in Multiples, then two pies are displayed.

   It also depends on the Fields added to the Multiples. There may be one Measure but adding Fields and setting the Data Level slider can increase the number of pies.

4. In the Filters section, drag the Slices slider to control the values from the selected fields from Slices.

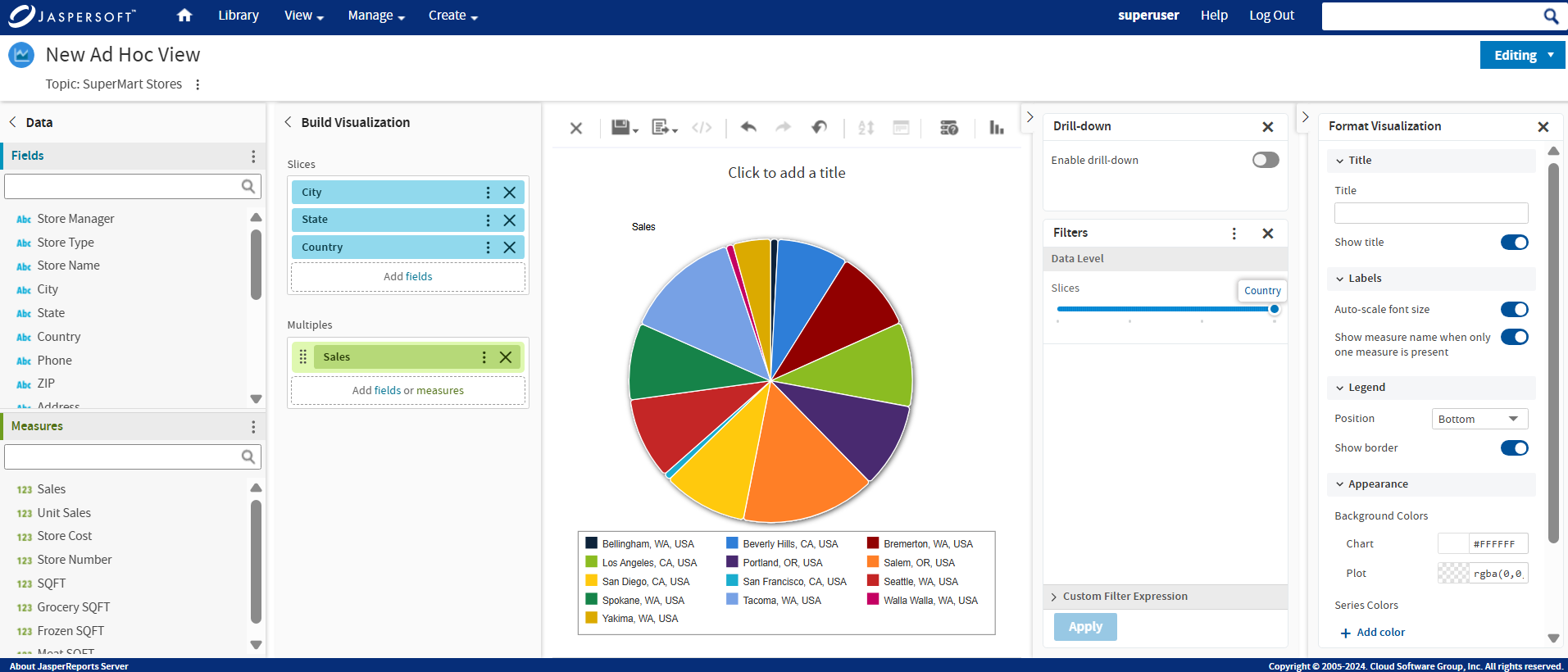

   Figure 13 Row Data Level Slider

   Note

   If there is more than one field selected in Multiples, a Multiples slider is also displayed. Select the field, across all fields, which must be used to generate pies.

5. Hover the mouse over the pie and view the tool-tip.



   Figure 14 Tool-tip

6. In the Format Visualization panel, provide the information, and enable or disable the toggles in the Title and Labels sections.



   Figure 15 Format Visualization

7. In the Legend section, use the Position dropdown menu and select the position of the legend display. By default, the position is Bottom, which displays the legend below the pie. The legend can also be displayed at the top, left, and right. You may also choose not to display the legend.

8. Go to Appearance settings. Click the color picker to select Background Colors and Series Colors. JasperReports Server reloads the Ad Hoc view's pie with the new display settings.



   Figure 16 Appearance Settings

Changing the Chart's Appearance Using Advanced Formatting¶

The Advanced settings in the Format Visualization panel gives you more control over the appearance of an Ad Hoc chart by allowing you to edit certain chart properties. For example, you can specify a list of colors for the chart, change the position of the legend, choose whether to display data values in the chart, and much more. You can find a full list of supported commands by clicking the More Information link on the Advanced tab or browsing to the Advanced Chart Formatting page on the Jaspersoft Community Site.

To edit the chart's properties

1. In the Format Visualization panel, go to the Advanced settings.

2. Click Add property.

3. In the Name field, enter the chart property you want to format and then enter the values for the property. For instance:


   • To format the chart's colors, enter colors for the property and a comma-separated list of colors in brackets for the values, such as ["red", "blue", "green", "magenta", "purple", "black", "yellow"].
   • To change the vertical alignment of the legend, enter legend.verticalAlign for the property and "top" or "bottom" or "center" for the value.
   • To display data values on the chart, enter plotOptions.series.dataLabels.enabled for the property and true for the value.
     Click the More Information link to see a list of the properties you can edit.
   • To ensure smaller bars or columns are visible by default, set the plotOptions.series.minPointLength property to a value of three or more. This is necessary because in Highcharts v11 the property's default value is 0.


   Note

   The Ad Hoc Designer does not validate the property name or values. The chart ignores any invalid property that you enter.

4. Click to save the property formatting.

   The chart is updated with the new formatting.

5. To remove the formatting, click next to the property you want to remove.
