Configuring JasperReports Web Studio Access¶

JasperReports Web Studio is the visual designer for creating and editing report templates for the JasperReports Library reporting engine and the whole Jaspersoft family of products that use this open source library to produce dynamic content and rich data visualizations. It comes as a web-based alternative to Jaspersoft Studio, the desktop application, which is the most complete and powerful designer for JasperReports templates.

JasperReports Web Studio can be run on its own or added to an existing JasperReports Server 8.2.0 instance as a pluggable report editing feature.

When JasperReports Web Studio is added to an existing JasperReports Server instance, two new JasperReports Web Studio applications jrio and repo are deployed along with jasperserver-pro in the application server.

jrio enables you to render reports and is used by JasperReports Web Studio for report preview.

repo is a JasperReports Server repository plug-in used by JasperReports Web Studio to store reports and files.

JasperReports Server and JasperReports Web Studio jrio/repo deployment¶

JasperReports Web Studio jrio and repo and JasperReports Server can be deployed either in a public network or in a private network.

In a public network, the JasperReports Server and JasperReports Web Studio jrio and repo are deployed on the same application server. jrio and repo are connected to JasperReports Server using an internal proxy server. JasperReports Server can directly access jrio and repo.

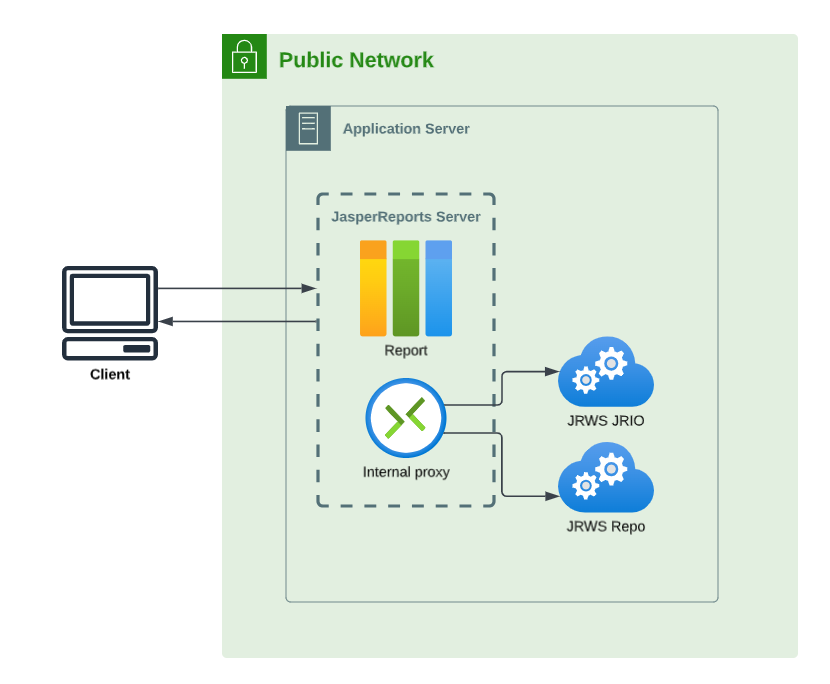

jrs jrws deployment public network

Figure 1 Deployment on public network

In a private network, the JasperReports Server and JasperReports Web Studio jrio and repo are deployed on remote application servers, connected using an internal proxy server. This is useful when deploying in a cluster where jrio and repo applications can be accessed only by JasperReports Server instance , and not users.

JasperReports Server can access jrio and repo via backend. Hence, the connection between the JasperReports Server instance and jrio and repo must be set.

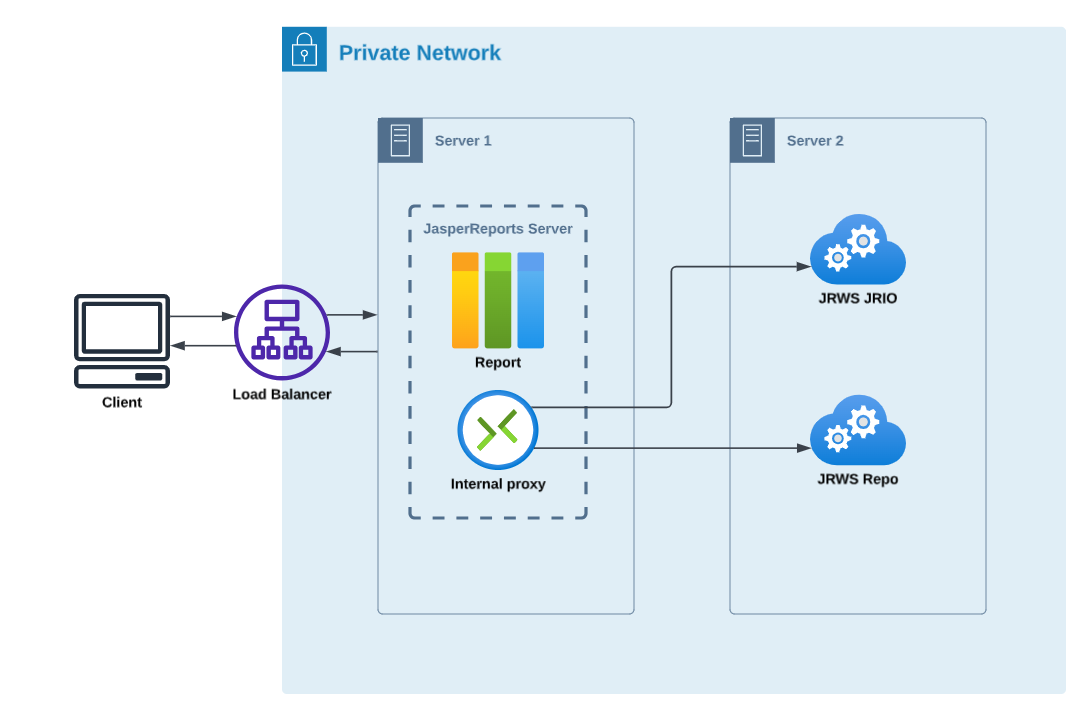

jrs jrws deployment private network

Figure 2 Deployment on private network

The following table describes the JasperReports Web Studio properties:

JasperReports Web Studio Properties
Configuration File
`.../WEB-INF/js.config.properties`
Property	Description
`jrws.jrio.url`	This URL is used to control where `jrio` is deployed. By default, the value is `http://localhost:8080/jrio` You can set this property for JasperReports Server by providing an environment variable, using the following syntax: `JRWS_JRIO_URL=http://<hostname>:<port>/jrio`
`jrws.repo.url`	This URL is used to control where `repo` is deployed. By default, the value is `http://localhost:8080/repo` You can set this property for JasperReports Server by providing an environment variable, using the following syntax: `JRWS_REPO_URL=http://<hostname>:<port>/repo`

If environment variables are provided, they take the precedence and the values set in the js.config.properties file are not considered.

You can deploy the jrio and repo applications on separate server, or service too. It is useful when JasperReports Server cluster is deployed and you want to keep jrio and repo applications aside on a separate service or instance.

Configuring JasperReports Web Studio Access¶

To disable access to JasperReports Web Studio access based on role, remove that role from the following property, located in the .../WEB-INF/applicationContext-security-pro-web.xml file:

<security:intercept-url pattern="/webstudio/**" access="ROLE_USER,ROLE_ADMINISTRATOR" />
