Working With Jaspersoft Studio Professional

Jaspersoft Studio enables you to create sophisticated, pixel-perfect reports on the desktop and upload those reports to JasperReports Server on AWS. Jaspersoft Studio allows you to create sophisticated layouts containing charts, images, subreports, crosstabs, and more.

Downloading Jaspersoft Studio

Jaspersoft Studio is available as an Eclipse Rich Client Package (RCP), downloadable from the following location: http://community.jaspersoft.com/project/jaspersoft-studio/releases.

See the Jaspersoft Studio User Guide for instructions on how to install Jaspersoft Studio on your local machine and installing your license.

Connecting Jaspersoft Studio to Your Data

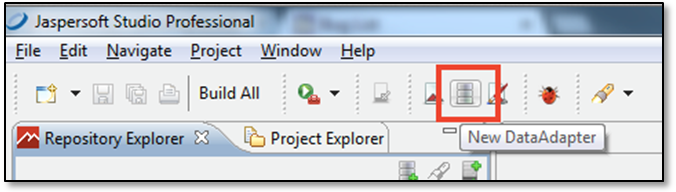

  1. Create a new Data Adapter (called Data Source in Jaspersoft Studio).03000013

    New DataAdapter button

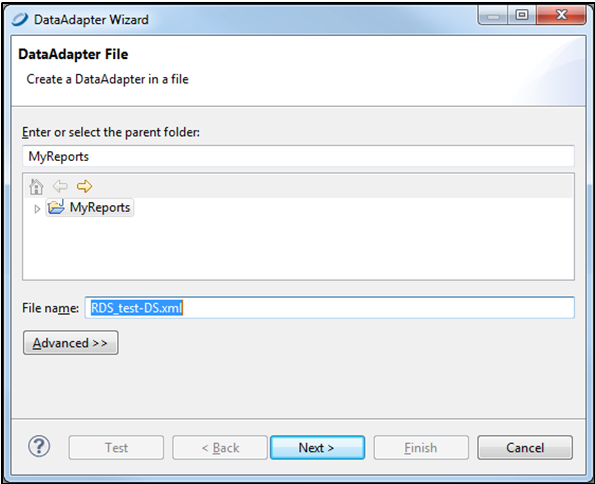

    In Jaspersoft Studio, click the New Data Adapter icon to display the DataAdapter wizard.

    03000014

    DataAdapter wizard

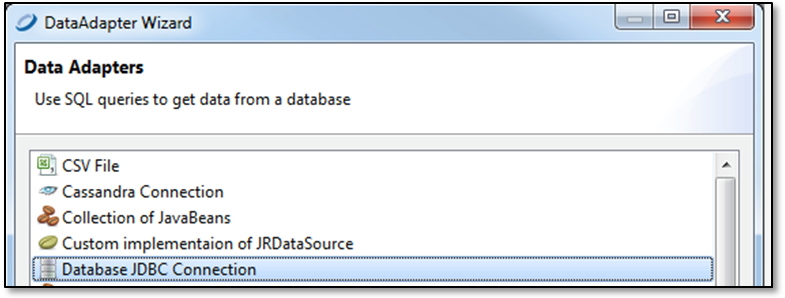

  2. Name your DataAdapter and click Next.03000015

    Selecting a data source type

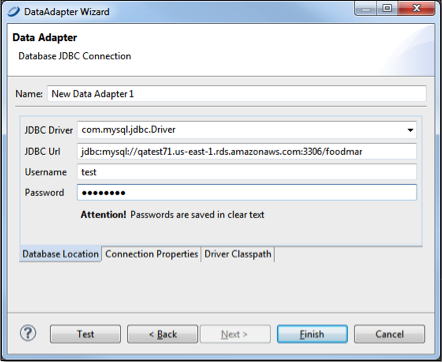

  3. Select the data source type. For Amazon RDS and Redshift, use JDBC. Then click Next.03000017

    Entering your database location

  4. Add the JDBC Driver. You may need to search the web for one that corresponds to your RDBMS or other technology on your EC2 instance.

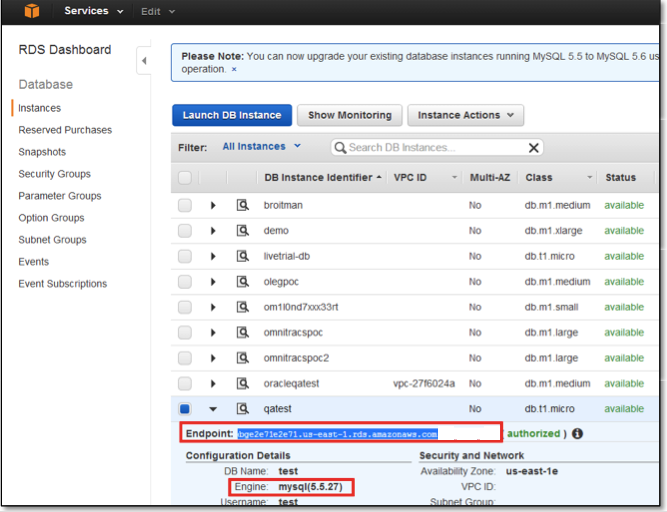

  5. Enter the JDBC Url. This is the Endpoint URL from your Amazon EC2 dashboard (including the port) and database type.03000016

    Locating the Endpoint

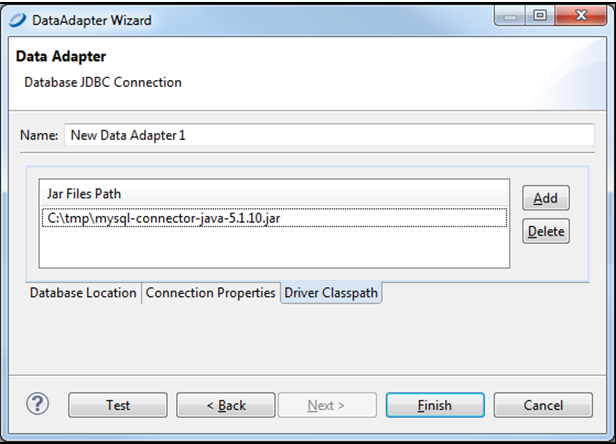

  6. Click the Driver Classpath tab and select the local path of the driver.03000018

    Selecting the driver classpath

  7. Test the connection.

Connecting Jaspersoft Studio Pro to the JasperReports Server Repository

You'll need to connect to the Jaspersoft Studio repository to manage and schedule reports

To define the Repository Explorer's connection

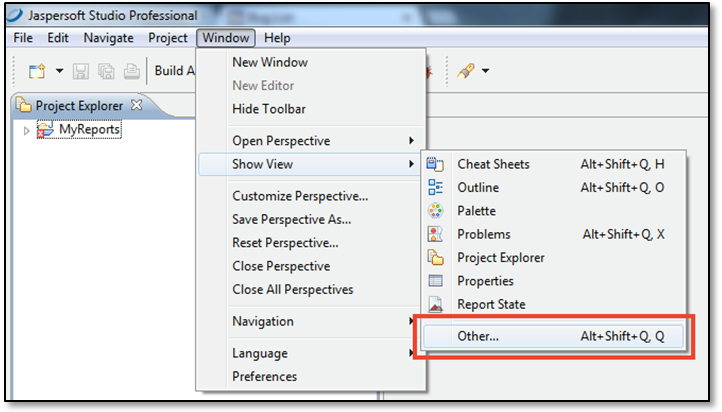

  1. In Jaspersoft Studio, select Window > Show Views > Other….0300001A

    Window > Show Views > Other…. menu

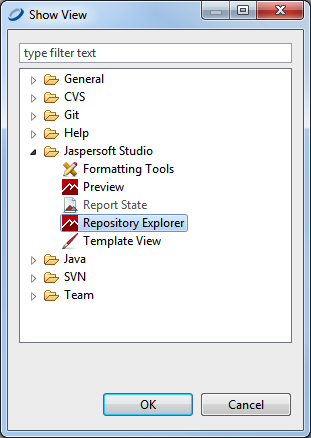

  2. Select Repository Explorer.0300001B

    Selecting the Repository Explorer

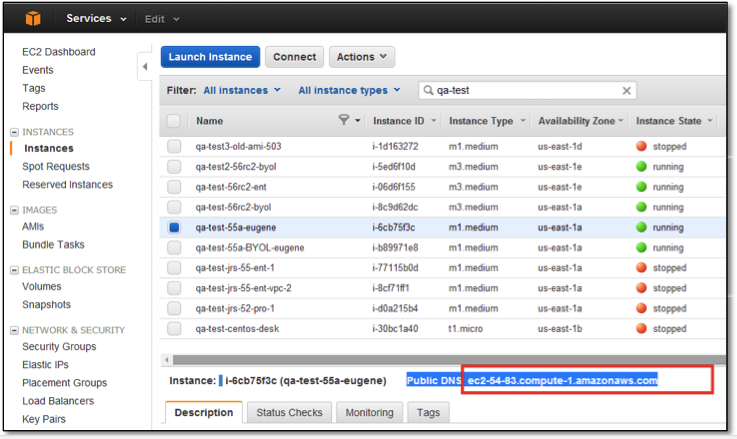

  3. Select the instance’s URL. It should start with ec2.0300001C

    Selecting the instance URL

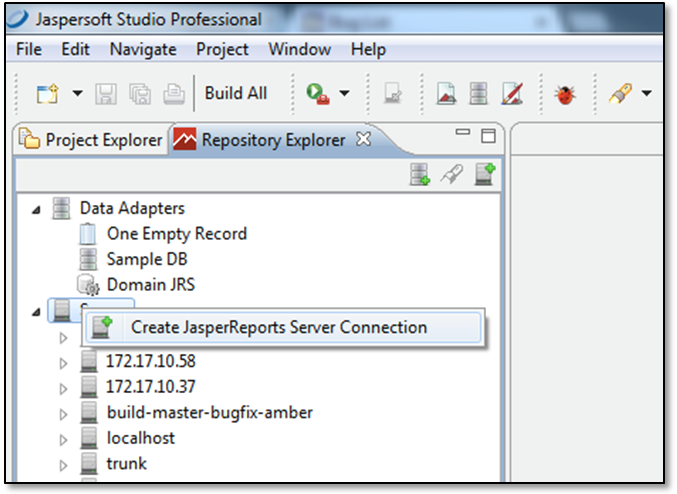

  4. Right-click the name of your instance to create a JasperReports Server repository connection.0300001D

    Creating the JasperReports Server repository connection

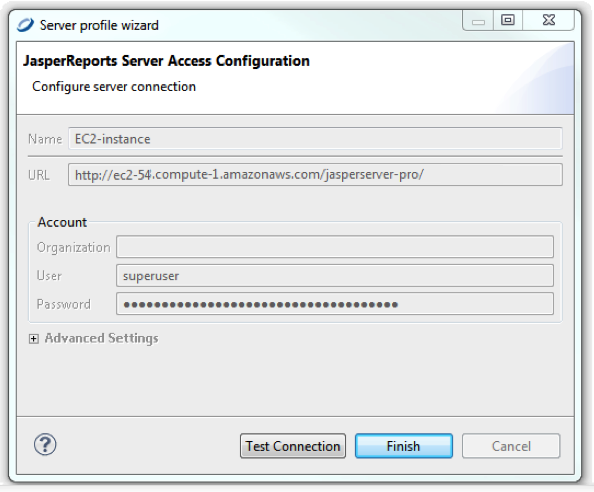

  5. Fill in the instance’s url, but don’t add the port ID number. Make sure to include /jasperserver-pro/ at the end of the path.

0300001E

Filling in the instance URL

From here you should follow the Jaspersoft Studio documentation on how to create reports. There is also online training and tutorials available here:

http://community.jaspersoft.com/wiki/jaspersoft-studio-tutorials-archive
